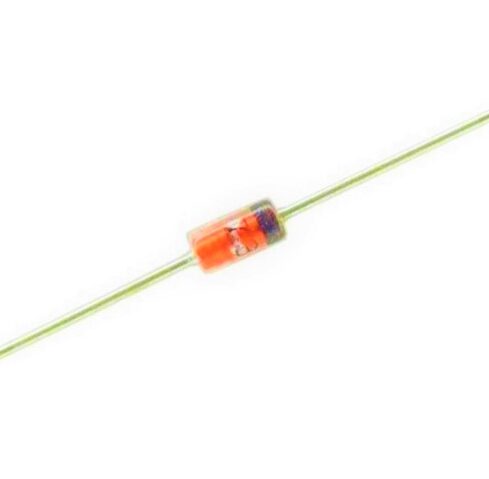

1N914 Diode – Small Signal Fast Switching Diode

The 1N914 is high-speed switching diodes fabricated in planar technology, and encapsulated in a hermetically sealed leaded glass SOD27 (DO-35) package. Mechanical Characteristics:- Case: DO-35, Glass Terminals: Solderable per MIL-STD-202, Method 208 Marking: Type Number Weight: 0.013 grams (approx.) Specification:- SymbolParameterValueUnits VRRMPeak Repetitive Reverse Voltage75V VRWMWorking Peak Reverse Voltage75V VRDC Blocking Voltage75V VRMNon-Repetitive Peak Reverse Voltage100V VR(RMS)RMS Reverse Voltage53V IOAverage Rectified Output Current75m A IFSMNon-Repetitive Peak Forward Surge Current1A TJOperating Junction Temperature Range 65 to 175degC TstgStorage Temperature Range 65 to 175degC
