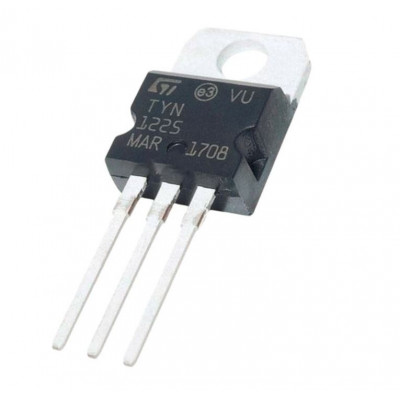

The TYN1225 SCR standard 25 A SCRs are suitable for general purpose applications. Using clip assembly technology, they provide a superior performance in surge current capabilities.Features:-On-state rms current, IT(RMS) 25 ARepetitive peak off-state voltage, VDRM/VRRM 600 to 1200 VTriggering gate current, IGT 40 mAInsulated package TO-220AB ins – Insulating voltage 2500 V rms – UL1557 certifiedSpecifications:-SymbolParameterRatingsUnitsIT(AV)Average on-state current16AIT(RMS)On-state rms current25AITSMNon-Repetitive Peak On-state Current314ATjOperating junction temperature range-40 to 125 °CTstgStorage Temperature-40 to 150 °CI2tI2t Value for fusing450A2SVRGMMaximum peak reverse gate voltage5VIGMPeak gate current1WDataSheet-> https://www.st.com/resource/en/datasheet/tyn1225.pdf
