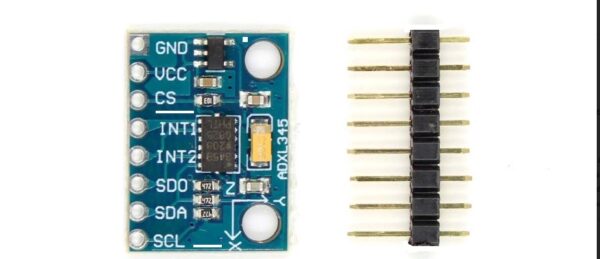

: rgb(33, 33, 33); This ADXL345 Triple axis accelerometer module is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to -16g. Digital output data is format as 16-bit twos complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. The ADXL345 Triple axis accelerometer module is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4mg /LSB) enables resolution of inclination changes of as little as 0.25deg. Digital Output: SPI / I2C 5V/3.3V input support. Lower pressure drop than the 1117 Onboard RT9161 chip power Ideal for noisy power environment Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V. Free-Fall Detection. Tap/Double Tap Detection. Wide temperature range (?40degC to 85degC). 10,000 g shock survival. User-selectable resolution Fixed 10-bit resolution. Full resolution, where resolution increases with G range, up to 13-bit resolution at -16 g (maintaining 4 mg/LSB scale factor in all G ranges). In The BoxSales PackagePack of 1,Model NumberADXL345 Triple Axis Accelerometer Module,Minimum Sensing Range-16,Maximum Sensing Range16,Power Requirement2V~3.6V DC,Power Consumption5.04E-4 W,Maximum Operating Temperature85 degC,Minimum Operating Temperature-40 degC,Features5V/3.3V input support.,Digital Output: SPI / I2C,Lower pressure drop than the 1117 Onboard RT9161 chip power,Ideal for noisy power environment,Ultra-Low Power: 40uA in measurement mode, 0.1uA in standby@ 2.5V.,Free-Fall Detection.,Wide temperature range (?40degC to 85degC).,10,000 g shock survival.,Tap/Double Tap Detection.,Fixed 10-bit resolution.,Full resolution, where resolution increases with G range, up to 13-bit resolution at -16 g (maintaining 4 mg/LSB scale factor in all G ranges).,
