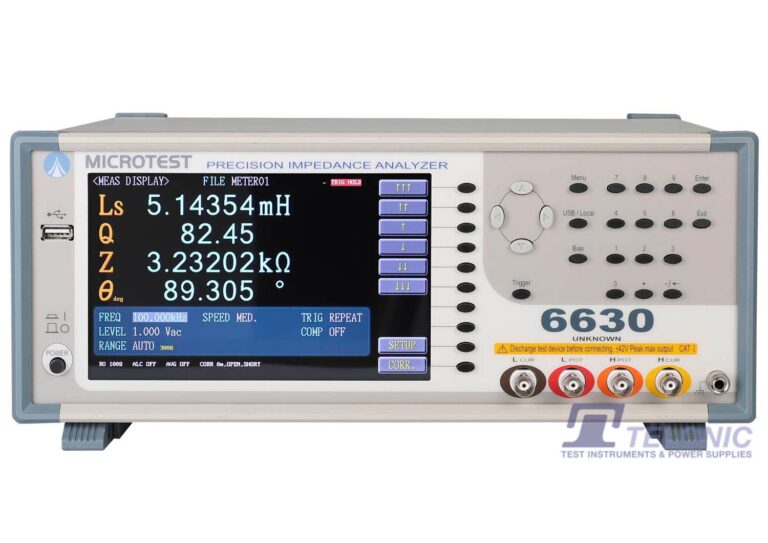

Microtest 6630-10 Precision High Frequency LCR Meter 10Hz to 10MHz

Description Microtest 6630-10 LCR Meter The 6630-10 precision LCR meter (10 Hz to 10MHz), it is suitable for the LCR testes of AC signals. The measurement in a continuously changing environment can be executed stage-by-stage with the test frequency and grade, and high-speed continuous tests can be performed under different test and mode conditions. The 6630-10 has output impedance 25Ω/100Ω can be switched, Auto Level control(ALC) , List mode function. Comparator function and Handler BIN classification function for component good and defective product classification. It supports RS-232, GPIB, Handler, LAN, USB Host/Device. The 6630-10 also supports a variety of fixtures, such as liquid dielectric material test fixture, dielectric material test fixture and magnetic material test fixture. Features: Signal Source Frequency Range: 10Hz – 10MHz Basic accuracy up to ±0.05% ALC function Output impedance 25Ω/100Ω, switchable Support meter mode and list mode, can used with various fixtures, such as: liquid dielectric material test fixture, dielectric material test fixture and magnetic material test fixture Ultra-high measuring speed < 3ms Open circuit/short circuit/load calibration function Up to four component parameters can be selected in the electric meter mode. The induction and DCR values can be measured and displayed simultaneously Auto component classification: Comparator function and Handler BIN classification function Support RS-232, GPIB, Handler, LAN, USB Host/Device interfaces PC connection data analysis software is available Measurement Units Explained μʹ / μʹʹ: relative permeability (magnetic properties) εʹ / εʹʹ: dielectric constant (electrical storage) Ls / Lp: series / parallel inductance Q / Qm: quality factor / mechanical quality SRF: self-resonant frequency I sat / I rms: saturation / continuous current Cs / Cp: series / parallel capacitance D: dissipation factor (energy loss) ESR / DCR / Rs: equivalent series / DC / series resistance C-V: capacitance vs voltage Z: impedance Fp / Kp: resonance frequency / coupling factor DC Bias Voltage: effect of DC voltage on capacitance Cgd / Cgs / Cds: MOSFET capacitances Application Measurement Inductance Ls / Lp / Q / SRF / I sat / I rms MLCC / Capacitance Cs / Cp / D / Q / ESR / DC Bias Voltage Voice coil motor / Hearing aids Ls / Q / Qm / SRF Piezoelectric element / Quartz crystal Cs / Cp / D / Fs / Fp Magnetic material μʹ / μʹʹ Dielectric / ceramics / Electrochemical materials εʹ / εʹʹ Wireless charging Ls / Q / SRF / DCR / Rs NFC / low Freq. RFID Ls / Q / SRF / DCR / Rs Battery ESR / Cs / Cp / D Wafer C-V LED Light board Z / Cs / Cp / D Diode Cs / Cp / D MOSFET Cgd / Cgs / Cds Product Images Automatic Production Line Learn more... Output Impedance 25Ω100Ω and Auto Level Control (ALC) Learn more... Measure Inductor (DCR) Learn more... Magnetic Material Test Fixture (FX-0000C8) Learn more... List Mode Learn more... Liquid Dielectric Material Test Fixture (FX-000C20) Learn more... Four Parameters Displayed Simultaneously Learn more... Dielectric Material Test Fixture (FX-0000C7) Learn more... Correction Learn more... Product Videos MICROTEST 6630 LCR Tester｜MLCC Measurement｜Impedance Measurement
