Rental TEKBOX TBLC08 50uH Single Phase AC Line Impedance Stabilisation Network (LISN), CISPR 16-1-2
$56.83
$72.17

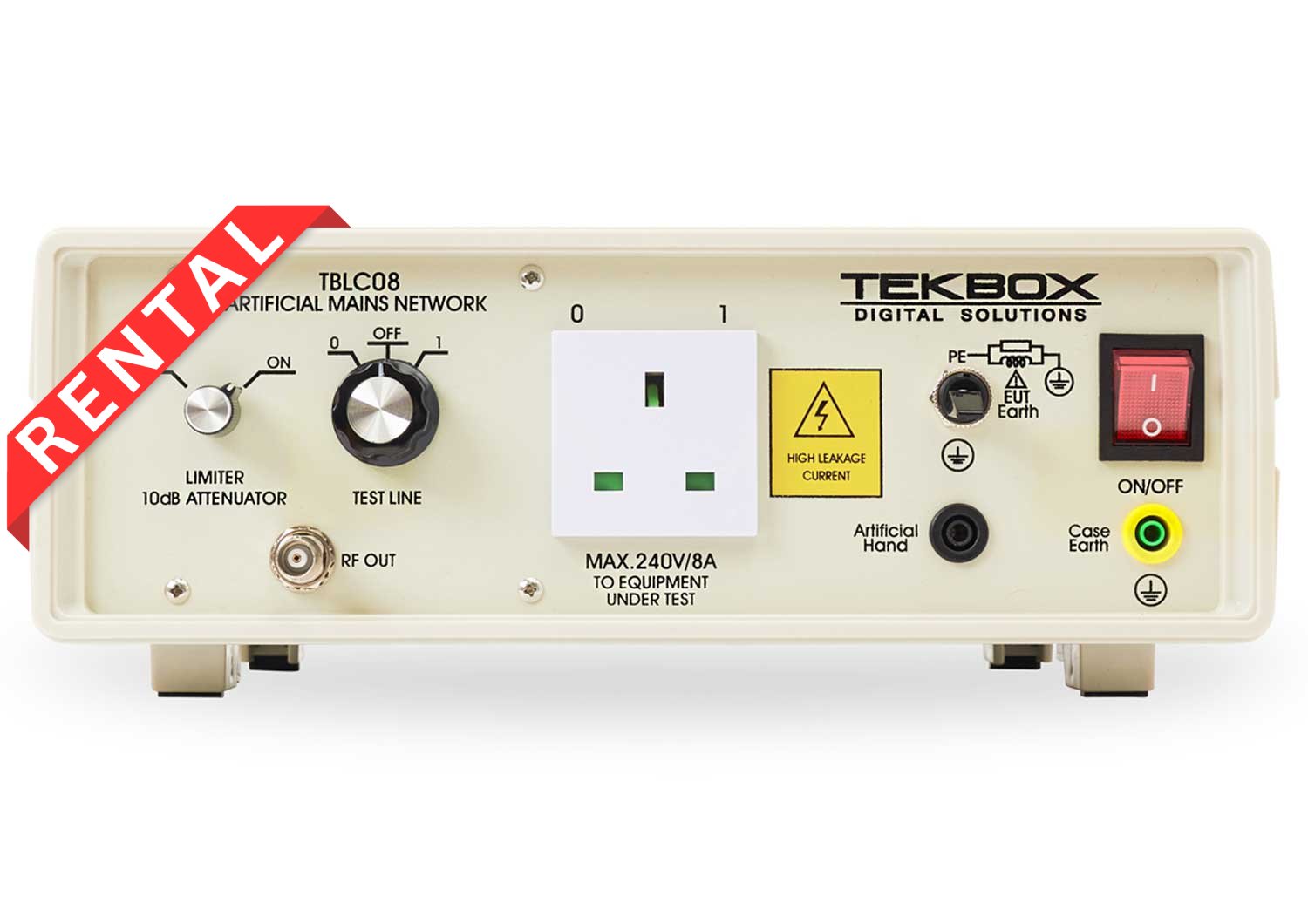

Description Rental Tekbox TBLC08 LISN Ideal for EMC pre-compliance testing to CISPR 16 – The TEKBOX TBLC08 is a single phase AC Line Impedance Stabilization Network (LISN) for the measurement of conducted emissions within the range of 9kHz to 30MHz, for devices operating at up to 260V. Conducted noise can be measured on the live and neutral conductors. The TBLC08 is equipped with a switchable limiter / attenuator and an artificial hand connection. Features: Maximum current: 8A Frequency range: 9kHz to 30MHz Impedance: 50Ω ║ (50 µH 5Ω) Artificial hand: 220pF 511Ω Switchable PE: 50Ω ║ 50µH Limiter / attenuator: 150kHz to 30MHz; 10dB Line voltage: max. 260V / 50 – 60Hz, CAT ‖ DUT socket: Country Specific Measurement connector: 50Ω BNC Power connector: IEC 60320 C13 Operating temperature range: 5°C … 40°C; 5% to 80% RH Safety: Safety class I, IEC 1010-01
