Rental: TEKBOX TBCDN-M3 COUPLING DECOUPLING NETWORK – Three lines, 36 Amp, 150 kHz to 230 MHz

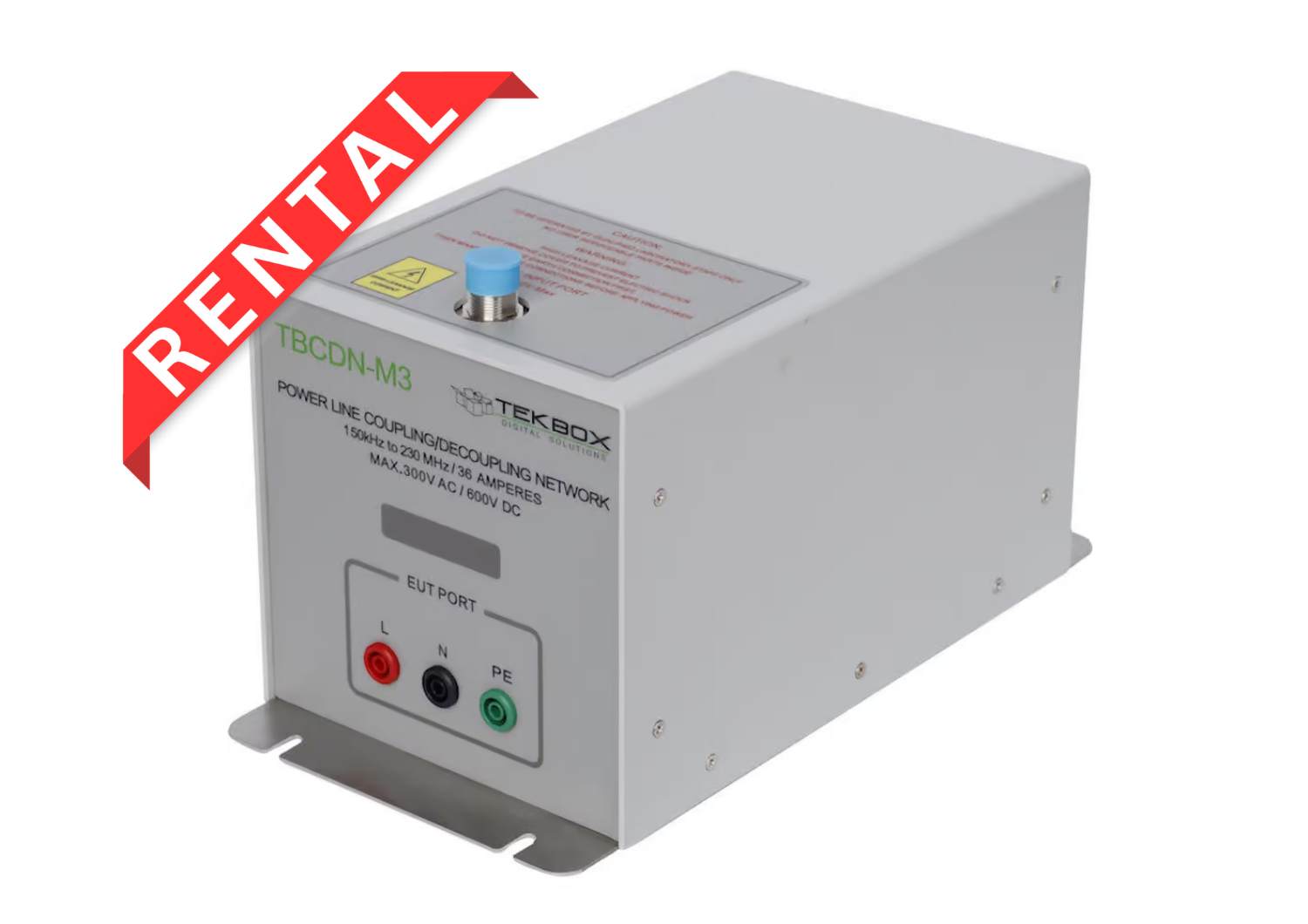

Description TEKBOX TBCDN-M3 COUPLING DECOUPLING NETWORKS M3 The Tekbox TBCN-M3 CDN is a Coupling Decoupling Network for conducted immunity testing according to IEC 61000-4-6. The TBCDN-M3 is compliant with IEC 61000-4-6 Annex D2. It is designed to inject common mode disturbance signals in the frequency range from 150 kHz to 230 MHz into unscreened AC and DC power supply lines. Features: Maximum supply voltage: 300V AC, 600V DC Maximum current: 36A Frequency range: 150 kHz – 230 MHz Maximum RF input power: 6.5W CW Maximum RF input voltage: 32 V Common mode impedance: 150 kHz – 24 MHz: 150 Ω ± 20 Ω 24 MHz – 80 MHz: 150 Ω 60 Ω / – 45 Ω 80 MHz – 230 MHz: 150 Ω ± 60 Ω Voltage Division ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB 80 MHz – 230 MHz: 9.5 dB 3 dB / – 2 dB EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in base plate for GND connection Housing material: powder coated aluminium, stainless steel base plate Dimensions: 300 x 150 x 150 mm Weight: ca. 2.5 kg Included: individual test protocol with voltage division ratio and common mode impedance Optional accessories: 30mm adapter panel with shorting bars and N connector 50 Ω to 150 Ω N-male to N-female adapter Product Videos Conducted Immunity Pre-compliance Test - A CDN method
