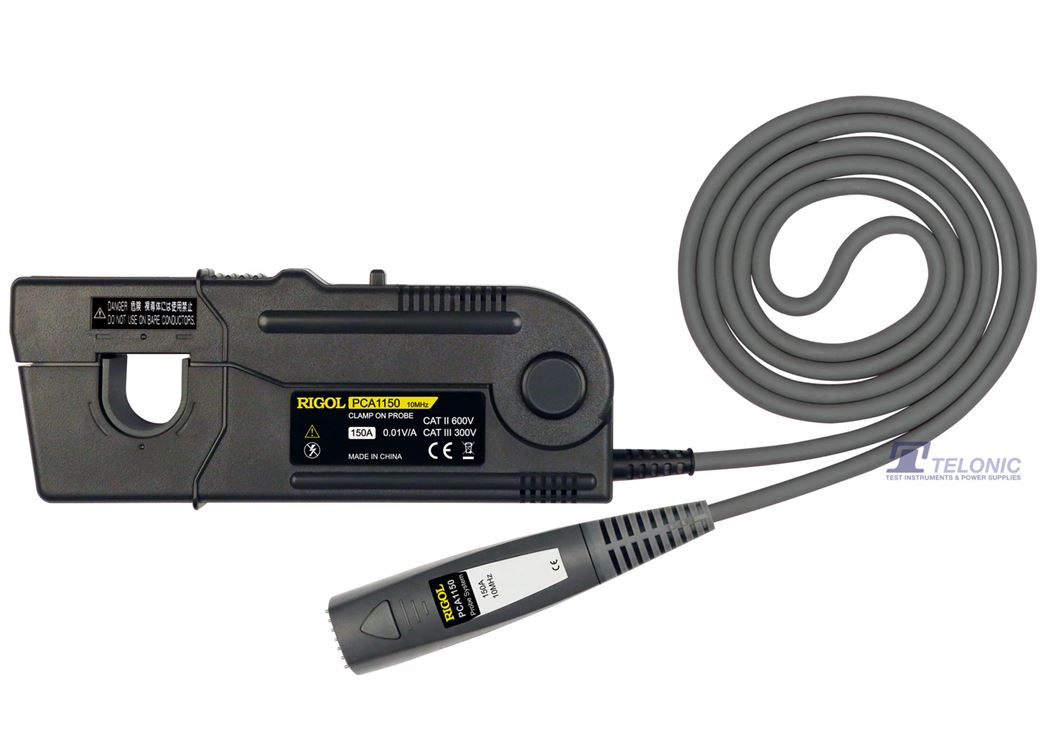

Description Features: Bandwidth: DC to 10MHz (-3 dB) Rise Time: ≤35ns Maximum Continuous Input Range: 150A Maximum Peak Current Value: 300A peak, non-continuous. 500A peak, pulse width ≤30μs Gain: 0.01V/A Amplitude Accuracy: ±1.0%rdg ±1mV, ≤150A. ±2.0%rdg, 150A to 300A peak (DC, and 45Hz to 66Hz) Noise: ≤25 mArms (for 20MHz band waveform measurement instrument) Maximum Rated Power: 8.5VA Location for use: Indoor, altitude up to 2000m, pollution degree 2 Effect of External Magnetic Fields: ≤150mA (in a DC or 60Hz, 400A/m magnetic field) Diameter of Conductor Available for Measurement: 20mm Conductor Available for Measurement: Insulated Conductor Guaranteed Accuracy Period: 1 year (opening/closing up to 10,000 times) Cable Length: Approx. 2m External Dimension: Sensor; approx. 176Wx69Hx27D (mm) (excluding protrusions), Terminator; approx. 27Hx55Wx18D (mm) Weight: approx. 500g Accessories: User Guide, Probe Case Safety: EN61010 EMC: EN61326
