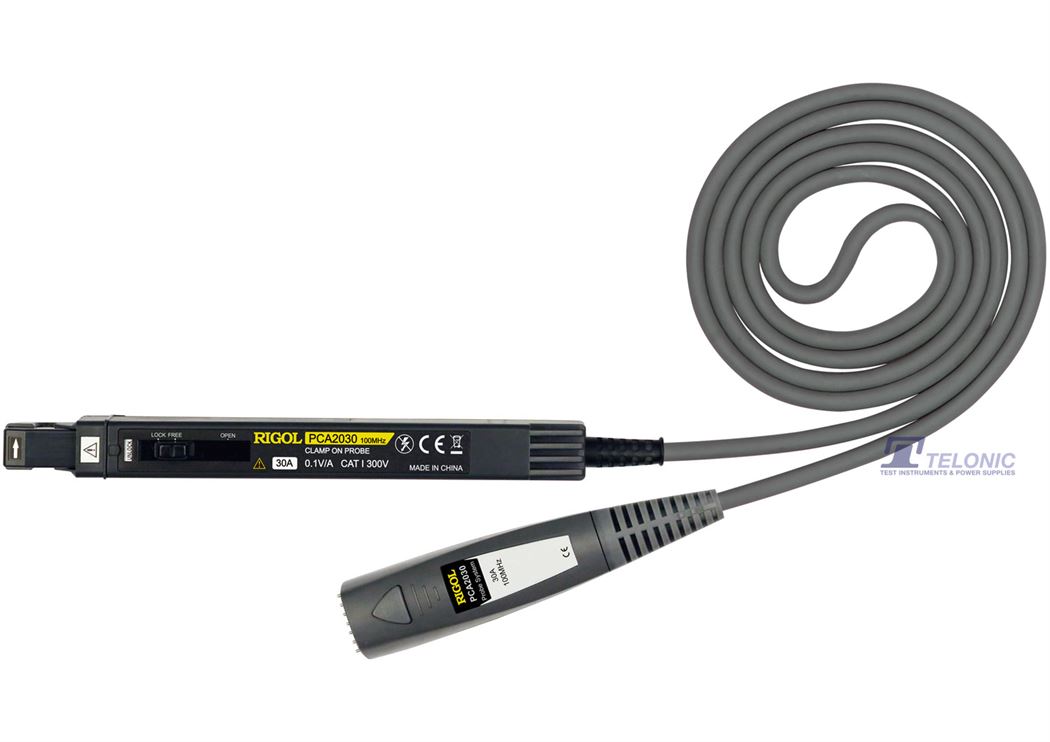

Rigol PCA2030 100MHz 30A Current Probe
$52.4
$72.31
Description Features: Bandwidth: DC to 100MHz (-3 dB) Rise Time: ≤3.5ns Maximum Continuous Input Range: 30Arms Maximum Peak Current Value: Non-Continuous 50A peak Gain: 0.1V/A Amplitude Accuracy: ±1.0%rdg ±1mV, ≤30Arms, ±2.0%rdg, ≤50A peak Noise: ≤2.5 mArms (for 20MHz band waveform measurement instrument) Maximum Rated Power: 8.5VA Location for use: Indoor, altitude up to 2000m, pollution degree 2 Effect of External Magnetic Fields: ≤5mA (DC and 60Hz, Magnetic field of 400A/m) Diameter of Conductor Available for Measurement: 5mm Conductor Available for Measurement: Insulated Conductor Guaranteed Accuracy Period: 1 year (opening/closing up to 10,000 times) Cable Length: Approx. 1.5m External Dimension: Sensor; approx. 175Wx18Hx40D (mm) (excluding protrusions), Terminator; approx. 27Hx55Wx18D (mm) Weight: approx. 240g Accessories: User Guide, Probe Case Safety: EN61010 EMC: EN61326
