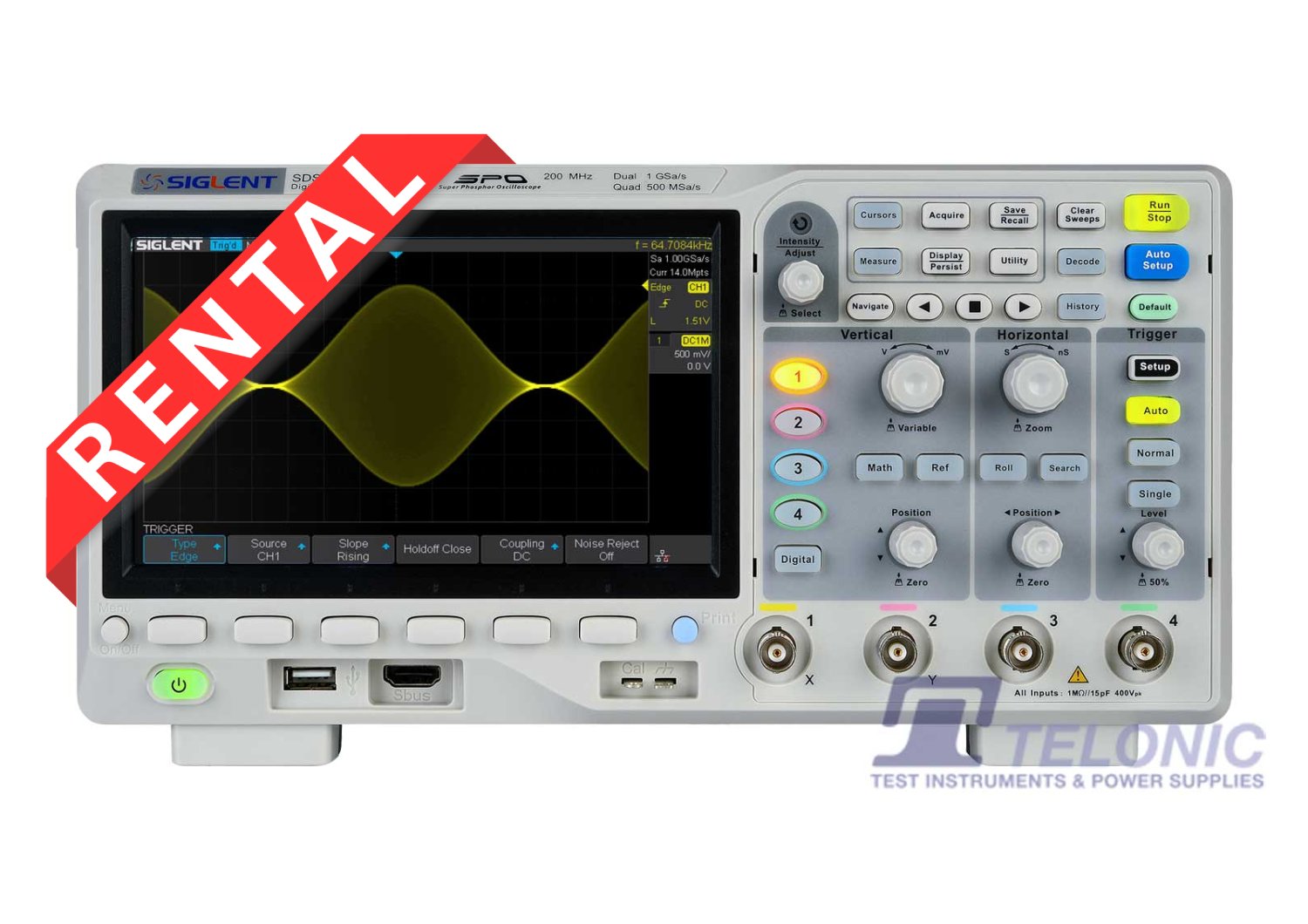

Description Rental Siglent SDS1104X-E Super Phosphor Oscilloscope The SDS1104X-E-E is a 4CH, 100MHz Super Phosphor Oscilloscope with a maximum sample rate of 1GSa/s and a standard record length of 14Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-E Series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a colour temperature display mode not found in other models in this class. Siglent’s latest oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Serial decoding is free and includes IIC, SPI, UART, CAN and LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 Mpt FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of SIGLENT’s new SDS1000X-E series cannot be matched anywhere else in this price class. Features: Intelligent trigger: Edge, Slope, Pulse, Width, Window, Runt, Interval, Timeout (Dropout), and Pattern Free serial bus triggering and decoding: IIC, SPI, UART, RS232, CAN and LIN Video triggers and supports HDTV Low background noise and 500V/div to 10V / div voltage scales 10 types of one-button shortcuts, supports Auto setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a vert small dead time segment to capture the qualifying event History waveform record (History) function, the maximum recorded waveform length is 80,000 frames Automatic measurement function on 38 parameters, supports Statistics, Gating measurement, Math measurement, History measurement and Ref measurement 1 Mpts FFT True measurement and Math can use all 14 Mpts of memory The preset key can be customised for user settings or factory “defaults” Security Erase mode Highspeed hardware based Pass/Fail function Lage 7-inch TFT-LCD display with 800 * 480 resolution Multiple interfaces types: USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass/Fail, Trigger Out Supports SCPI remote control commands Multi-language display and embedded help Browser control/onboard webpage for software free monitoring (4 channel models only) Bode plotting function controls external generator (SIGLENT SDG or SAG generators, 4 channel models only) Siglent SDS1000X-E Oscilloscope Comparison Table Model Channels Bandwidth Real Time Sampling Rate Capture Rate Memory Depth SDS1202X-E 2 EXT 200MHz 1GSa/s 100,000 wfm/s (Normal Mode) 400,000 wfm/s (Sequence Mode) 14Mpts SDS1104X-E 4 100MHz 1GSa/s 100,000 wfm/s (Normal Mode) 400,000 wfm/s (Sequence Mode) 7 Mpts/CH (Non Interleaved) 14 Mpts/CH (Interleaved) SDS1204X-E 4 200MHz 1GSa/s 100,000 wfm/s (Normal Mode) 400,000 wfm/s (Sequence Mode) 7 Mpts/CH (Non Interleaved) 14 Mpts/CH (Interleaved) Product Images Colour Temperature Grading Learn more... 256-Level Intensity Grading Learn more... 7 Inch TFT-LCD Display and 10 One-button Menu Learn more... 1 Mpt FFT Learn more... Waveform Capture Rate Up to 400,000 wfms Learn more... True Measurements on all data Learn more... Serial Bus Decoding Function (Standard) Learn more... Record Length of Up to 14 Mpts Learn more... History Waveforms (History) Mode and Segmented Acquisition (Sequence) Learn more... High Speed Hardware-Based PassFail Function Learn more... Gate and Zoom Measurement Learn more... Customisable Default Key Learn more... Complete Connectivity Learn more... Product Videos What's In The BoxSDS1000X-E Series Power On Main FunctionSDS1000X-E Embedded Web ControlSDS1000X-E Zoom Reference PositionAdding Mixed Signal/Digital Channels (MSO)Web Control: Very Fast Web InterfaceFrequency Response Curves (Bode Plot)0007 Inexpensive 50ohm FeedBinary-to-CSV ConverterHow to use the interval trigger
