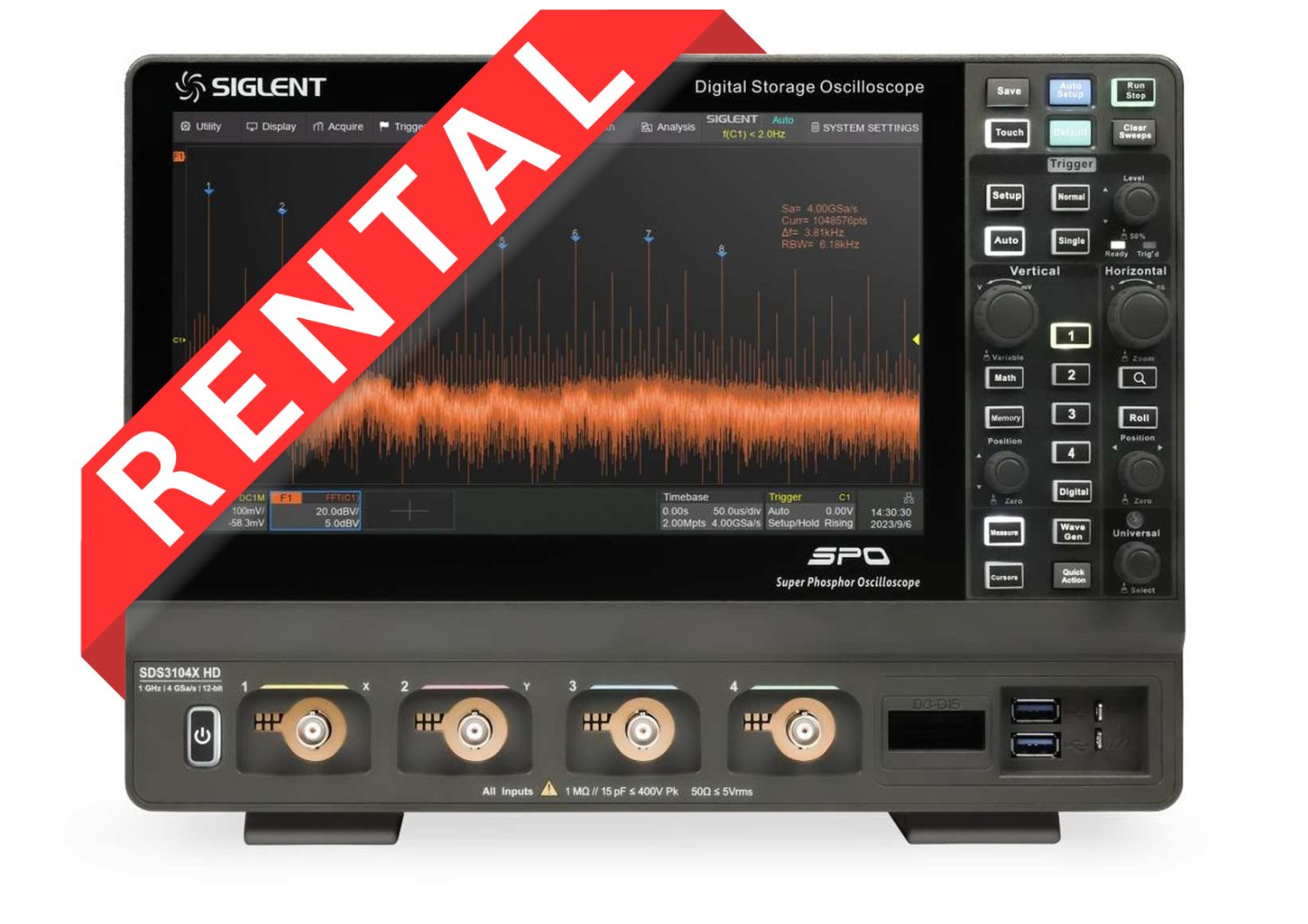

Description Rental SDS3104X HD 1GHz, 4 channels, 4GSa/s, 12-bit high resolution, 400Mpts memory depth mixed signal oscilloscope; 12.1” touch screen SIGLENT’s SDS3000X HD series Digital Storage Oscilloscopes are available in bandwidths of 1 GHz, 500 MHz and 350 MHz, have 12-bit ADCs with sample rate up to 4GSa/s, maximum record length of 400 Mpts/ch, and display up to 4 analog channels 16 digital channels for high performance mixed signal analysis. The SDS3000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 200,000 wfm/ s, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot and Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS3000X HD . The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operational efficiency. It also supports mouse control, and remote web control over LAN. Features: 4 analogue channels, up to 1 GHz bandwidth with up to 4GSa/s sample rate 12-bit ADC Low background noise: 125 μVrms @ 1 GHz bandwidth SPO technology Waveform capture rates up to 200,000 wfm/s in Normal mode and 890,000 wfm/s in Sequence mode Supports 256-level intensity grading and color temperature display modes Up to 400 Mpts/ch record length Digital trigger system Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN included as standard. CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429 Option Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event History waveform record (History) function, the maximum recorded waveform length is 80,000 frames Automatic measurements on 50 parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces 4 Math traces (4 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis High Speed hardware-based Average, ERES; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks 16 digital channels (optional) External 50 MHz waveform generator (optional) Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures Interfaces include: 2x USB 3.0 Host，1x USB 2.0 Host , USB 3.0 Device (USBTMC)，1000M LAN ((VXI-11/Telnet/Socket/LXI)), External Triger In, Aux Out (Pass/Fail, Trigger Out) Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard Siglent SDS3000X-HD Oscilloscope Comparison Table MODEL ANALOGUE BANDWIDTH NUMBER OF CHANNELS HIGHEST REAL-TIME SAMPLING RATE HIGHEST WAVEFORM CAPTURE RATE MAXIMUM STORAGE DEPTH VERTICAL RESOLUTION SDS3034X HD 350MHz 4 4GSa/s 890,000 wfm/s 400 Mpts 12-bit SDS3054X HD 500MHz 4 4GSa/s 890,000 wfm/s 400 Mpts 12-bit SDS3104X HD 1GHz 4 4GSa/s 890,000 wfm/s 400 Mpts 12-bit Product Images Histogram: probability distribution of measured parameters Measurement sources: C1~C4, Math1~Math4, Zoom1~Zoom4, Ref A~Ref D " src="https://telonic.co.uk/jg/wp-content/uploads/2024/02/Siglent-SDS1000X-HD-Measurement-66-parameters-Telonic-UK-768x576.jpg"/> <div class="SCcarousel_img"> Siglent-SDS1000X-HD-Measurement 66 parameters <span>Learn more...</span> </div> </a> </div> </div> <div class="item darkCyan"> <div class="link-list" id="grouped-image-list"> <a title="Siglent-SDS1000X-HD-Serial Trigger and Decode" class="fancybox" href="https://telonic.co.uk/jg/wp-content/uploads/2024/02/Siglent-SDS1000X-HD-Serial-Trigger-and-Decode-Telonic-UK.jpg" rel="gallery1"><img loading="lazy" title="Siglent-SDS1000X-HD-Serial Trigger and Decode" alt="Standard 7 kinds of decoding: suitable for multiple scenarios Siglent-SDS1000X-HD-Measurement 66 parameters Learn more... SDS1000X HD comes standard with I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, and the decoding results can be displayed in hexadecimal, decimal, binary, or ASCII format, and two parallel buses can be decoded at the same time, each of which is displayed as a graphic icon on the left side of the screen. In addition, the settings for the signals and the bus configurations can be synchronized to the triggers through the “Copy to trigger” function." src="https://telonic.co.uk/jg/wp-content/uploads/2024/02/Siglent-SDS1000X-HD-Serial-Trigger-and-Decode-Telonic-UK-768x576.jpg"/> <div class="SCcarousel_img"> Siglent-SDS1000X-HD-Serial Trigger and Decode <span>Learn more...</span> </div> </a> </div> </div> <div class="item darkCyan"> <div class="link-list" id="grouped-image-list"> <a title="Siglent-SDS1000X-HD-Math" class="fancybox" href="https://telonic.co.uk/jg/wp-content/uploads/2024/02/Siglent-SDS1000X-HD-Math-Telonic-UK.jpg" rel="gallery1"><img loading="lazy" title="Siglent-SDS1000X-HD-Math" alt="" src="https://telonic.co.uk/jg/wp-content/uploads/2024/02/Siglent-SDS1000X-HD-Math-Telonic-UK-768x576.jpg"/> <div class="SCcarousel_img"> Siglent-SDS1000X-HD-Math <span>Learn more...</span> </div> </a> </div> </div> <div class="item darkCyan"> <div class="link-list" id="grouped-image-list"> <a title="Siglent SDS1000X Optional Power Analysis: beneficial to power supply design" class="fancybox" href="https://telonic.co.uk/jg/wp-content/uploads/2024/02/Siglent-SDS1000X-HD-Power-Analysis-Helping-Power-Supply-Design-and-Evaluation-Telonic-UK-scaled.png" rel="gallery1"><img loading="lazy" title="Siglent SDS1000X Optional Power Analysis: beneficial to power supply design" alt="Power Analysis: beneficial to power supply design Siglent-SDS1000X-HD-Serial Trigger and Decode Learn more... Siglent-SDS1000X-HD-Math Learn more... Siglent SDS1000X Optional Power Analysis: beneficial to power supply design Learn more... Product Videos Siglent SDS1000X HD and SDS3000X HD
