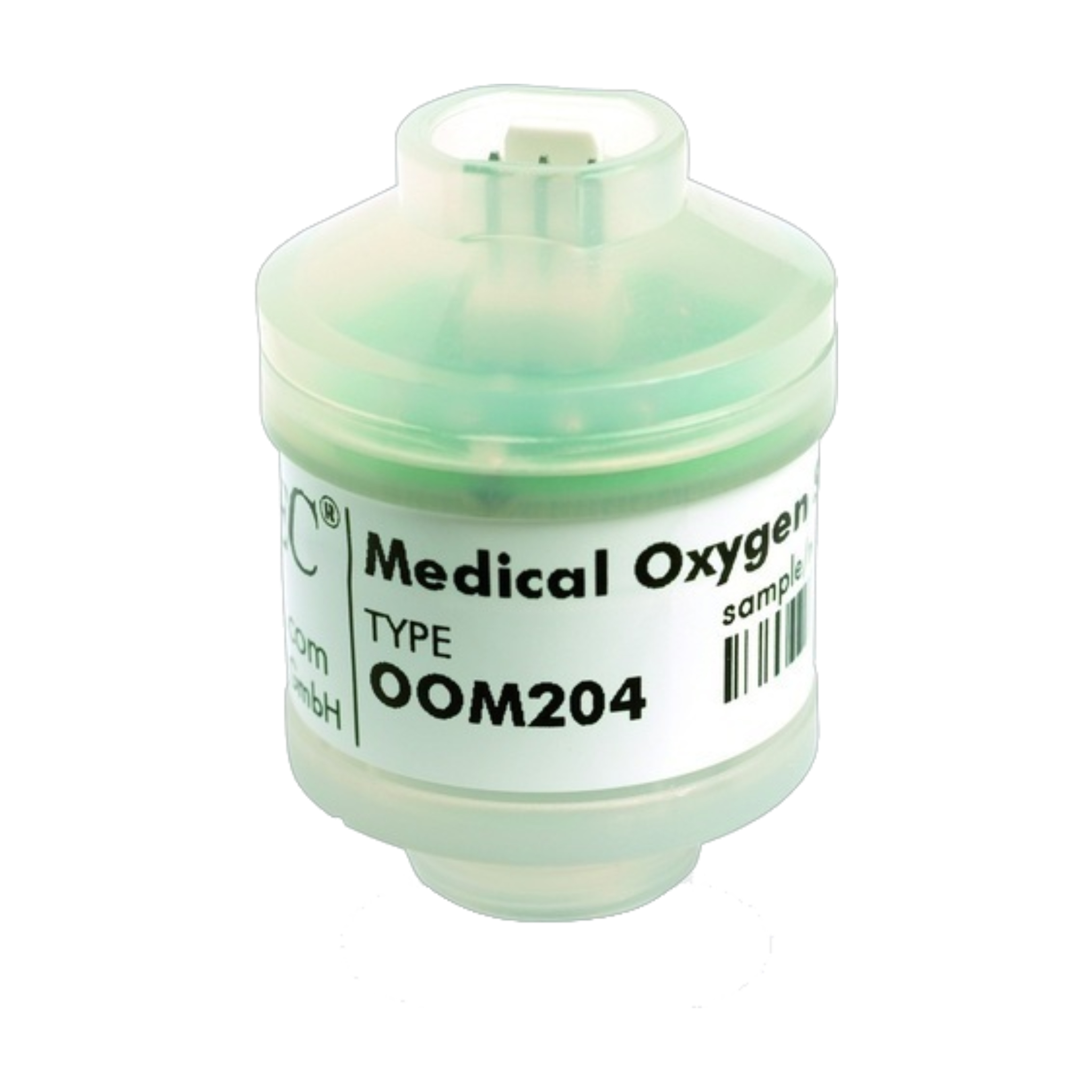

For Bulk requirement, Kindly click on enquiry now button Product Details : Product Description Brand Honeywell Envitec Model Name/Number OOM204 Measurement range 0 % … 100 % oxygen (at atmospheric pressure) Nominal sensor lifetime ≥ 500 000 % volume oxygen hours Output in ambient air 9 mV … 13.5 mV (each of two channels) Output difference 1.25 mV (between the two channels) Electrical interface 3 pin (Molex® 22-11-1031) Accuracy meets ISO 80601-2-55 requirements Repeatability < 1 % volume O2 at constant temperature and pressure Linearity error < 3 % relative Response time < 12 s to 90 % of final value Influence of humidity -0.03 % rel. per % RH at 25 °C Pressure range 0.6 bar … 2 bar (ppO2 0 … 1250 mbar O2 Operating temperature 0 °C … 50 °C Temperature compensation built-in NTC compensation Operating humidity 0 % … 99 % RH non-condensing Storage temperature -20 °C … 50 °C Warm-up time < 30 minutes, after replacement of sensor Weight approximately 28 grams Part number 01-00-0097 Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
