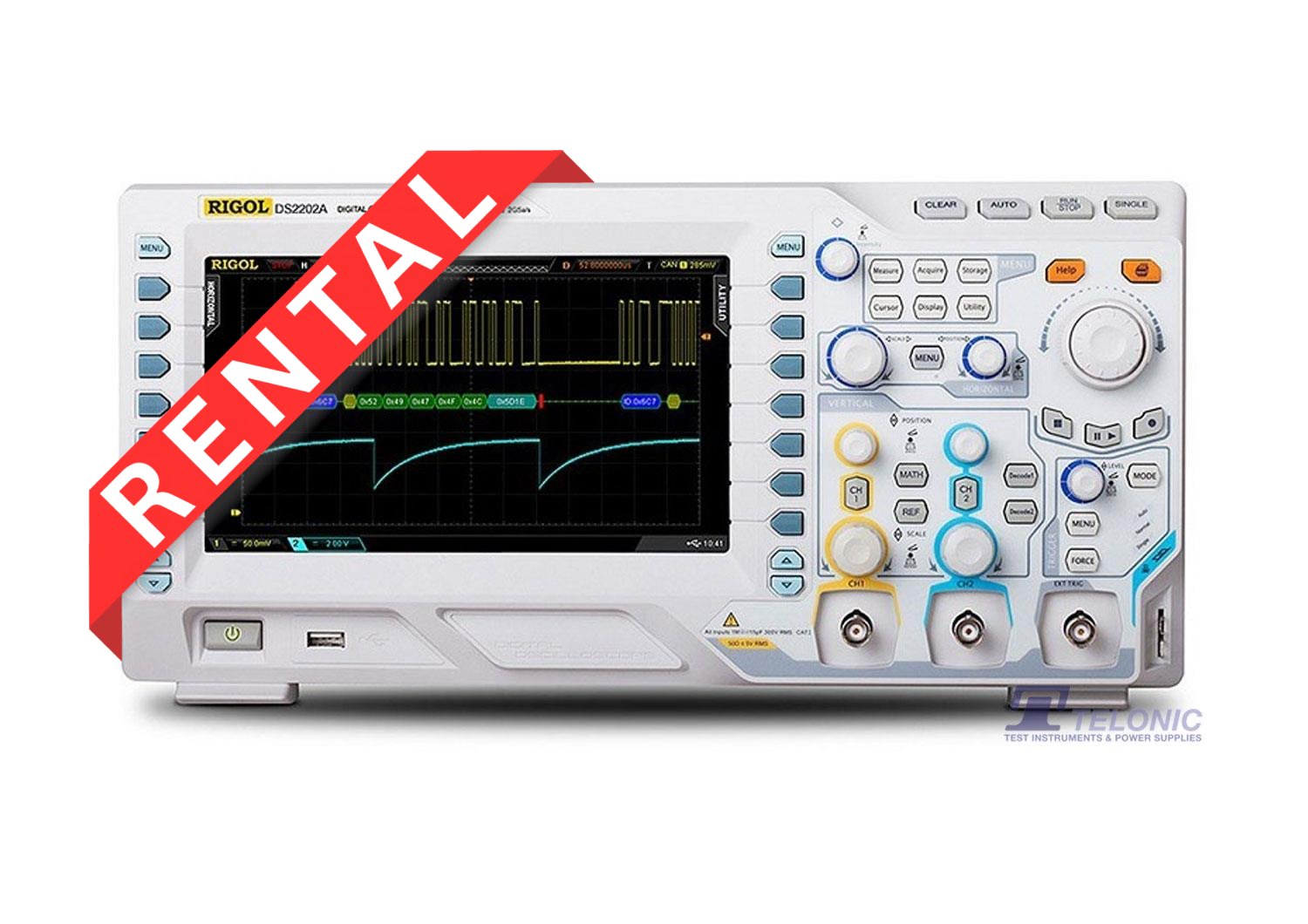

Description Free Software Options Bundle (£215.00 Value) Purchase any DS/MSO2000A Series Oscilloscope and receive a Software Options Bundle (BND-MSO-DS2000A) Rental Rigol DS2202A Digital Oscilloscope The Rigol DS2202A is a 200MHz, 2CH, 2GSa/s multi-functional high performance Digital Oscilloscope. Standard features include – Sensitivity down to 500μV/div, record, replay & analysis functions, selectable 50Ω input impedance and 8″ WVGA display with 256 grading levels. Furthermore, it possesses a variety of trigger functions, decoding functions, connectivity options, mathematical operations including FFT, automatic waveform measurement parameters with statistics, a pass / fail test and a built-in help system. A two channel 25MHz function / arbitrary waveform generator is included on ‘-S’ models. The Rigol DS2202A is a versatile instrument that offers useful performance and features at a very competitive price. Features: 200MHz bandwidth, 2 channels, with selectable 50Ω input impedance Maximum sample rate 2GSa/s Vertical scale 500μV/div to 10V/div Memory depth up to 56Mpts Innovative “UltraVision” technology Up to 50,000wfms/s waveform capture rate Up to 65,000 frames real-time waveform record, replay & analysis functions 8″ WVGA (800×480) TFT LCD display, 256 intensity grading levels Up to 17-off trigger functions, including various protocol triggers Auto measurement of 29 waveform parameters, with statistics Built-in FFT with a choice of window functions Pass/fail test function Various waveform math functions Supports internal and external storage of instrument settings, waveforms, screen images and parameters PictBridge printer support Built-in help facility Connectivity: USB Host & Device, LAN(LXI), AUX Output, (USB-GPIB, optional) Supplied with… 2-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide Options include… Advanced trigger functions, RS232/I2C/SPI decoding, CAN-bus analysis, software options bundle, high-voltage probes, high-voltage differential probes, current probes, rack mount kit, soft carry bag, Telonic Standard Calibration (traceable to UK national standards), RCL 17025 calibration Rigol DS/MSO2000 Oscilloscope Comparison Table Model Channels Bandwidth Max Sample Rate Memory Depth Waveform Refresh Rate DS2102A 2 Analogue, 16 Digital 100MHz 2GSa/s 56 Mpts 50,000 wfm/s MSO2102A 2 Analogue, 16 Digital 100MHz 2GSa/s 56 Mpts 50,000 wfm/s MSO2102A-S 2 Analogue, 16 Digital 100MHz 2GSa/s 56 Mpts 50,000 wfm/s DS2202A 2 Analogue, 16 Digital 200MHz 2GSa/s 56 Mpts 50,000 wfm/s MSO2202A 2 Analogue, 16 Digital 200MHz 2GSa/s 56 Mpts 50,000 wfm/s MSO2202A-S 2 Analogue, 16 Digital 200MHz 2GSa/s 56 Mpts 50,000 wfm/s DS2302A 2 Analogue, 16 Digital 300MHz 2GSa/s 56 Mpts 50,000 wfm/s MSO2302A 2 Analogue, 16 Digital 300MHz 2GSa/s 56 Mpts 50,000 wfm/s MSO2302A-S 2 Analogue, 16 Digital 300MHz 2GSa/s 56 Mpts 50,000 wfm/s Product Images 16 Digital Channels (MSO Models) Learn more... Low Noise floor with wide vertical range Learn more... Integrated 2 Channel full function 25MHz generator Learn more... Product Videos Rigol DS2000A - Affordable 2GS/s Digital Storage Oscilloscopes
