Kikusui SD012-PCR-LE/WE Avionics Test Software MIL-STD-704A / RTCA/DO-160

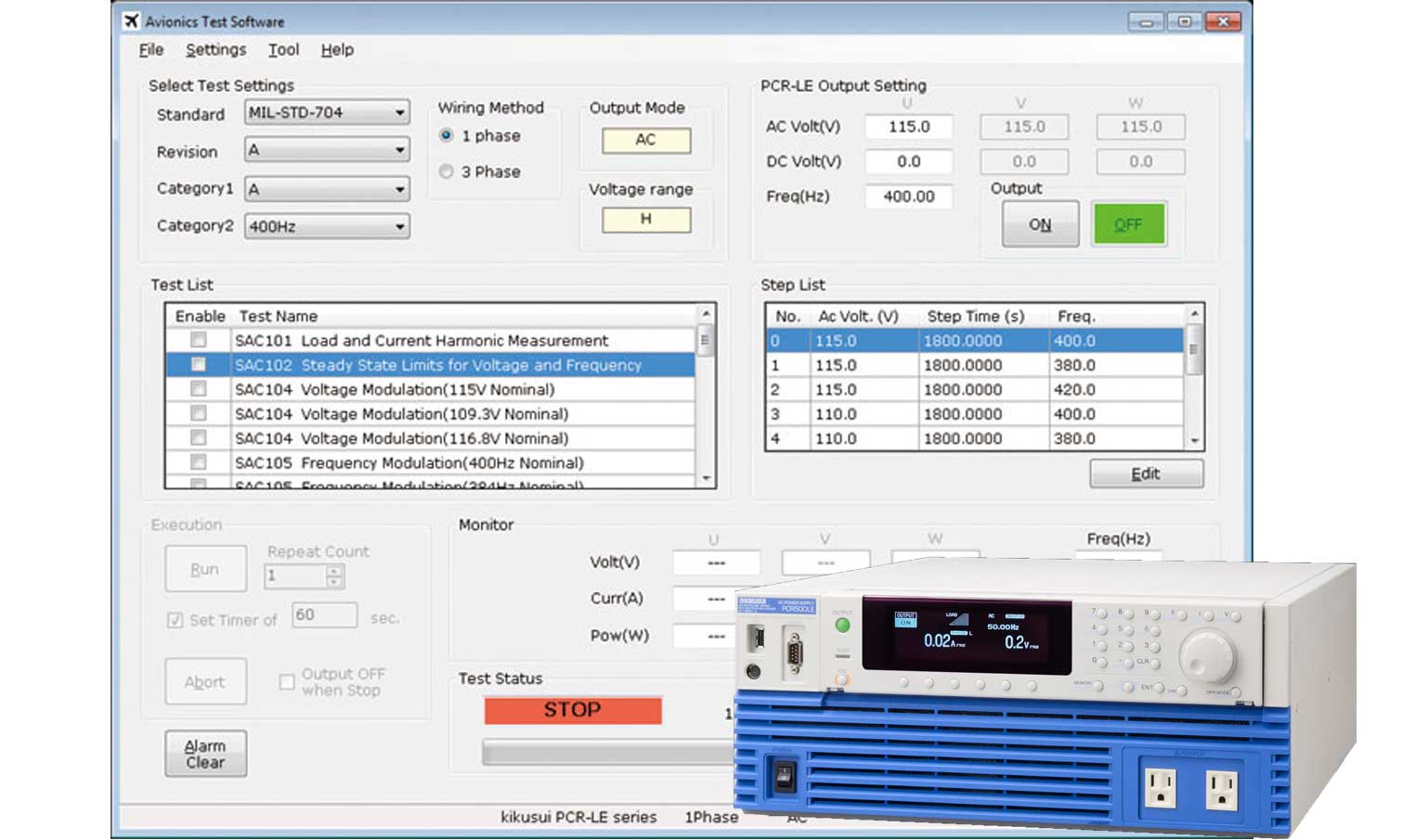

Description Kikusui SD012-PCR-LE/WE Avionics Test Software Avionics Test Software [SD012-PCR-LE] is a software application that support to the aircraft test standards, and is used to control the PCR-LE/LE2 /WE Series that enables you to conduct the test standards for the MIL-STD-704, RTCA/D0-160 and JIS W0812 standards. Test patterns are library-based, which enables tests to be easily run by simply selecting the wiring configuration and the type of test. *Note: To use this software, the firmware version of the PCR-LE/LE2 must be 4.2 or later. Simple Operation: Complete test processes can be accomplished by simply clicking on the tests you wish to perform. Edit & Save Test Conditions: Easily create customized test conditions for specialized R&D evaluation tests and for simple confirmation of various applications. Output in CSV Format: Test measurement data as well as test reports can be created in CSV format. Military Standard Standard Revision / Category AC Test AC Test AC Test AC Test AC Test DC Test DC Test SAC SVF TAC TVF SXF LDC HDC MIL-STD-704A Rev. A ✔ — ✔ — — ✔ — Rev. E ✔ — ✔ — — ✔ ✔ Rev. F ✔ ✔ ✔ ✔ ✔ ✔ ✔ Civilian Standard *1 Standard Revision / Category AC Test AC Test AC Test DC Test DC Test DC Test DC Test A CF A NF A WF A D B Z RTCA/DO-160 Section 16 Rev. F ✔ ✔ ✔ ✔ ✔ ✔ ✔ Rev. G ✔ ✔ ✔ ✔ ✔ ✔ ✔ JIS W0812 *2 2004 ✔ ✔ ✔ ✔ ✔ ✔ ✔ *1 Not correspond to the next standard test item. · RTCA/DO-160F, 16.5.1.5.1 Normal Surge Voltage for 230 V equipment at RTCA/DO-160G, 16.5.2.3.1 Abnormal Surge Voltage · 16.5.1.5.1 Normal voltage surge for 230 V equipment at JIS W0812, 16.5.3.3.1 Abnormal voltage surge *2 Japanese domestic standard corresponding to DO-160 Rev. E Product Videos Avionics Software Test Footage
