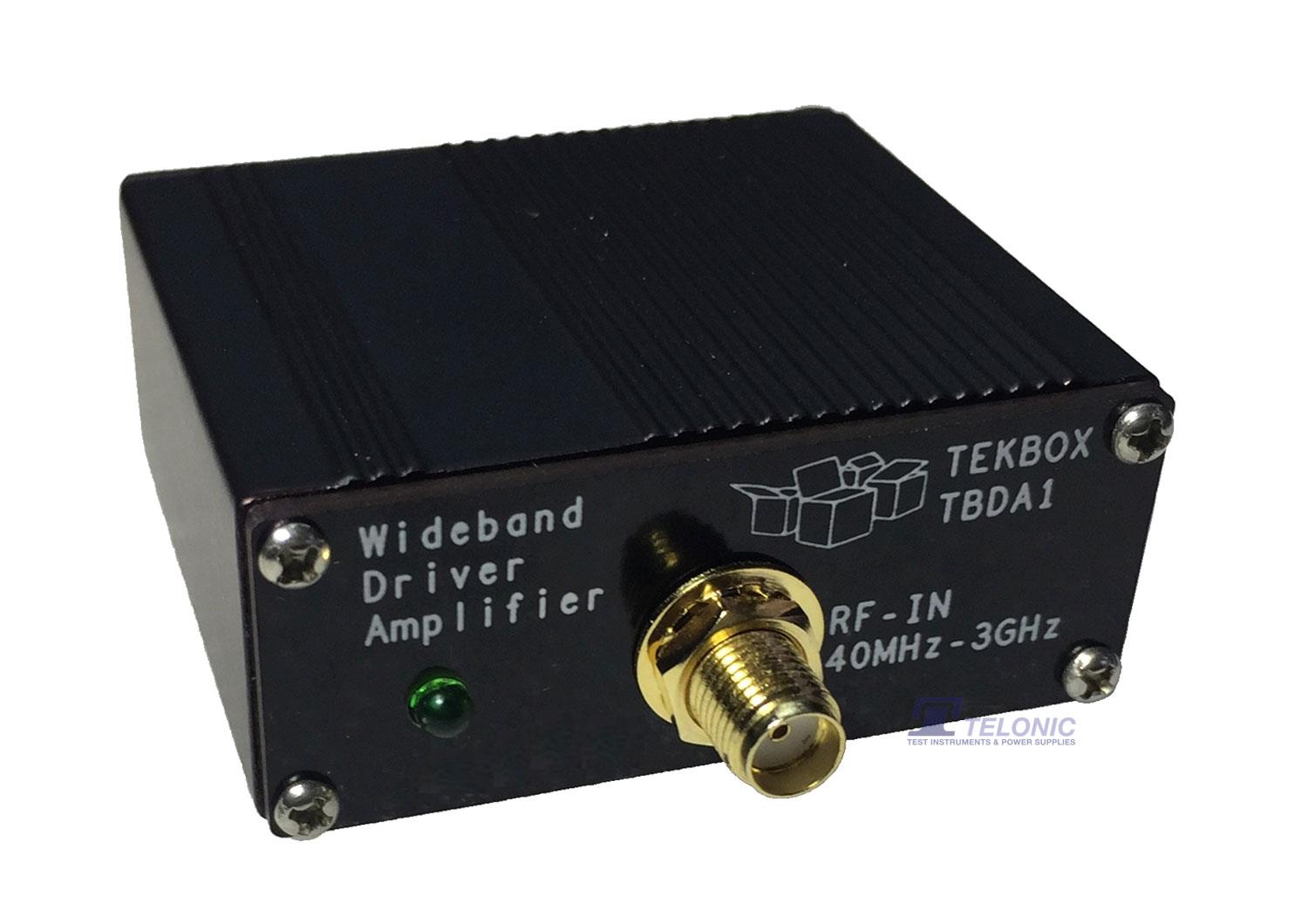

Description TEKBOX TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of 22dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain. The Following Items Are Included: 1-off RF amplifier module 1-off RF cable – N(m) to SMA(m) 1-off RF cable – SMA(m) to SMA(m) 1-off RF adapter – N(m) to SMA(f) 1-off USB lead – type-A to mini-B 1-off measurement plot Specification: Input: 50Ω, SMA female Output: 50Ω, SMA female Nominal Supply Voltage: 5V (@ 115mA typ., mini-USB-B connector) Maximum Supply Voltage: 5.5V Maximum Input Power: 20dBm 1dB Output Compression Point @ 40MHz: 21.5dBm 1dB Output Compression Point @ 2GHz: 22.5dBm Third-Order Output Intercept Point @ 40MHz: 40dBm Third-Order Output Intercept Point @ 2GHz: 43dBm Reverse Isolation, S12: 20dB Noise Figure: 3 – 4dB Gain: 12dB @ 25MHz, 13.8dB @ 50MHz, 14.2dB @ 100MHz, 14.2dB @ 500MHz, 14.1dB @ 1GHz, 14.2dB @ 1.5GHz, 13.6dB @ 2GHz, 13.8dB @ 2.5GHz, 14.0dB @ 3GHz
