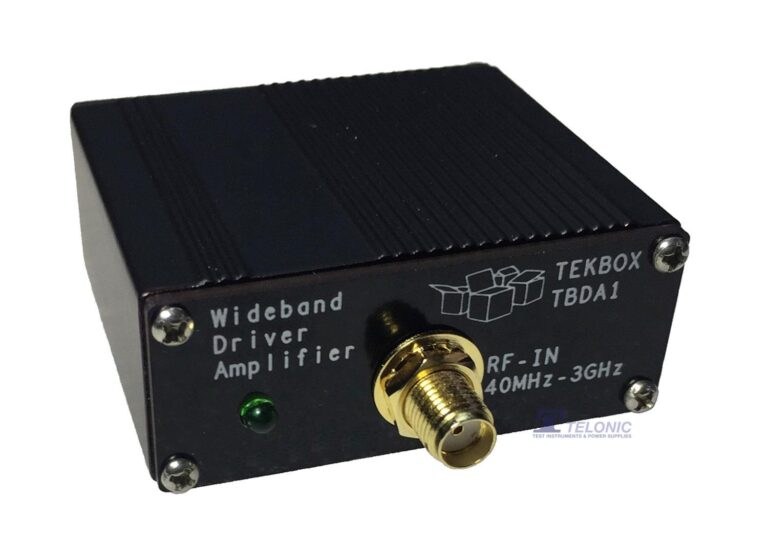

Description TEKBOX TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of 22dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain. The following Items Are Included: 1-off RF amplifier module 1-off RF cable – N(m) to SMA(m) 1-off RF cable – SMA(m) to SMA(m) 1-off RF adapter – N(m) to SMA(f) 1-off USB lead – type-A to mini-B 1-off measurement plot Specification: Input: 50Ω, SMA female Output 50Ω, SMA femaleNominal Supply Voltage: 5V (@ 225mA typ., mini-USB-B connector) Maximum Supply Voltage: 5.5V Maximum Input Power: 6dBm 1dB Output Compression Point @ 40MHz: 21.5dBm 1dB Output Compression Point @ 2GHz: 22.5dBm Third-Order Output Intercept Point @ 40MHz: 39.8dBm Third-Order Output Intercept Point @ 2GHz: 42.8dBm Reverse Isolation, S12: <-40dB Noise Figure: 3.1 – 4.1dB Gain: 26dB @ 25MHz, 28.4dB @ 50MHz, 28.6dB @ 100MHz, 28.6dB @ 500MHz, 28.8dB @ 1GHz, 28.3dB @ 1.5GHz, 27.2dB @ 2GHz, 28.5dB @ 2.5GHz, 28.9dB @ 3GHz
