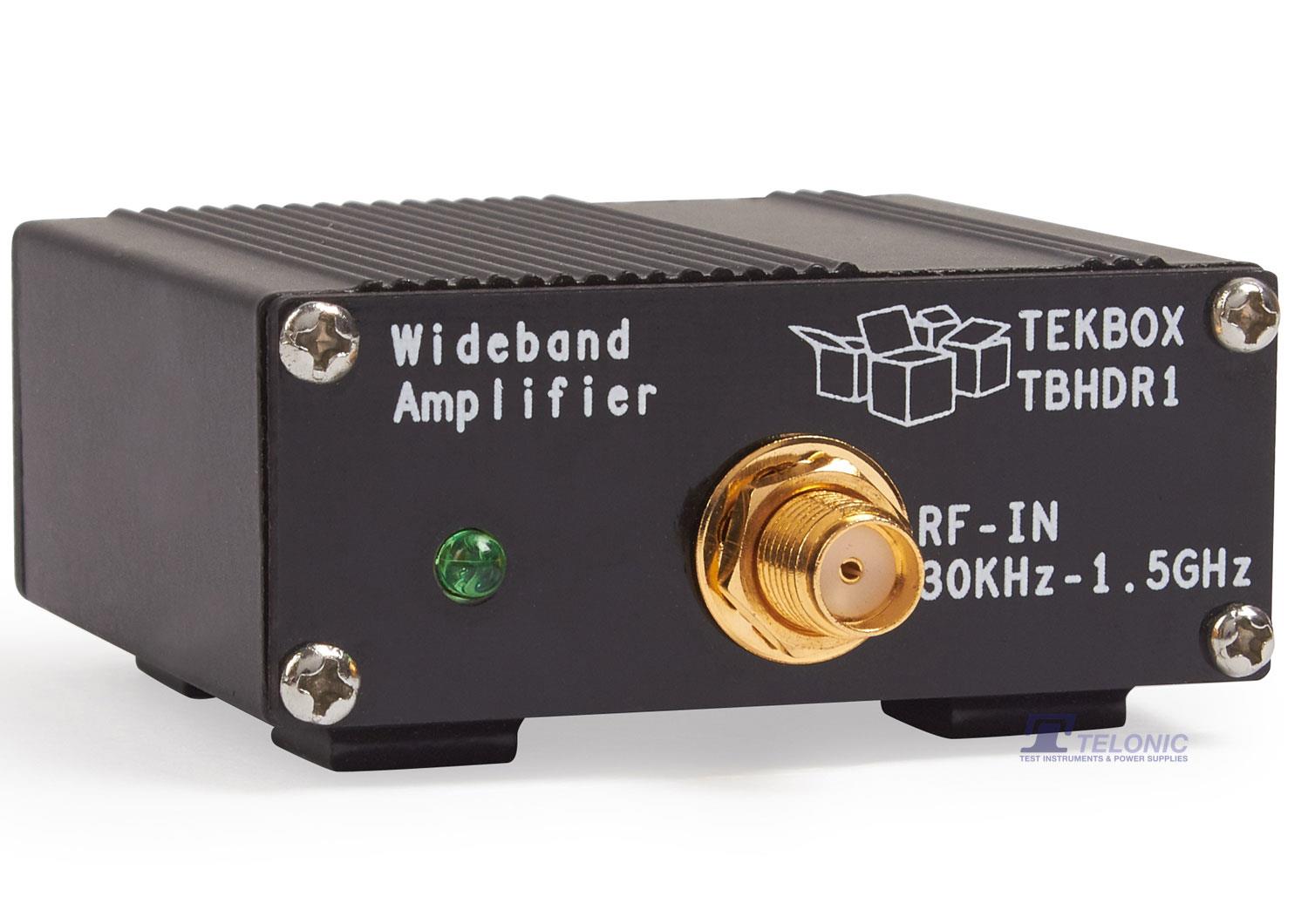

Description The TBHDR1 is a high dynamic range amplifier with a frequency range from 30kHz to 1.5GHz. Its gain is characterised up to 6GHz. The TBHDR1 has a high IP3 and a low noise figure which makes it an ideal alternative pre-amplifier for spectrum analysers and receivers in EMC test applications. Due to its low noise figure, high IP3 and gain down to the kHz range it also performs very well as amplifier for active loop antennas. The Following Items Are Included: 1-off RF amplifier module 1-off RF cable – N(m) to SMA(m), 75cm 1-off RF cable – SMA(m) to SMA(m), 25cm 1-off RF adapter – N(m) to SMA(f) 1-off USB lead – type-A to mini-B 1-off measurement plot Specification: Input: 50Ω, SMA female, return loss <-16dB (30kHz to 1.5GHz) Output: 50Ω, SMA female, return loss <-10dB (30kHz to 1.5GHz) Nominal Supply Voltage: 5V (@ 100mA typ., mini-USB-B connector) Maximum Supply Voltage: 5.5V Maximum Input Power: 10dBm 1dB Output Compression Point @ 100MHz: 19.2dBm 1dB Output Compression Point @ 500MHz: 19.0dBm 1dB Output Compression Point @ 1GHz: 18.3dBm Third-Order Output Intercept Point @ 100MHz: 38dBm Third-Order Output Intercept Point @ 500MHz 37dBm Third-Order Output Intercept Point @ 1GHz: 33dBm Reverse Isolation, S12: <-28dB Noise Figure: 2.7dB Typical Gain: 17.2dB @ 30kHz, 23.6dB @ 150kHz, 24.2dB @ 1MHz, 24.0dB @ 100MHz, 22.9dB @ 500MHz, 21.1dB @ 1GHz, 19.5dB @ 1.5GHz, 14.1dB @ 3GHz, 5.3dB @ 6GHz
