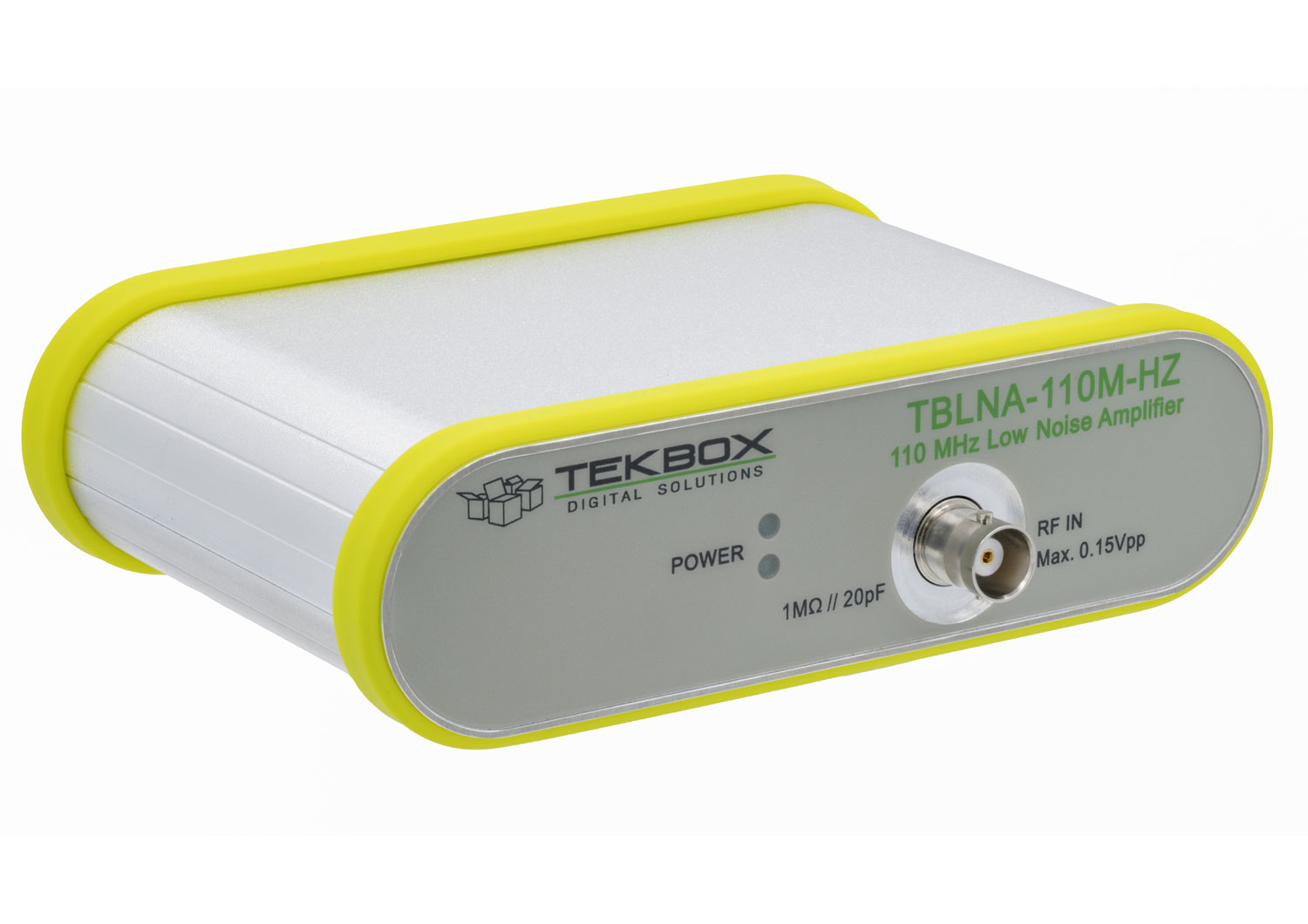

Description TEKBOX TBLNA-110M-HZ DC-Coupled Impedance Converter The TBLNA-110M-HZ is a DC-coupled Impedance Converter from 1 MΩ to 50 Ohm with a flat response in the frequency range from DC to 110MHz and a 3 dB bandwidth from DC to 500 MHz. One of the impedance converter’s two separate outputs has a gain of 0 dB, while the other has a gain of 20 dB. When the TBLNA110M-HZ is used with a 1:10 oscilloscope probe, this corresponds to a gain of -20 dB or 0 dB. Applications: In-circuit measurements in 50 Ohm systems, using standard oscilloscope probes. High impedance frontend for spectrum analysers and other RF equipment with 50 Ohm inputs.
