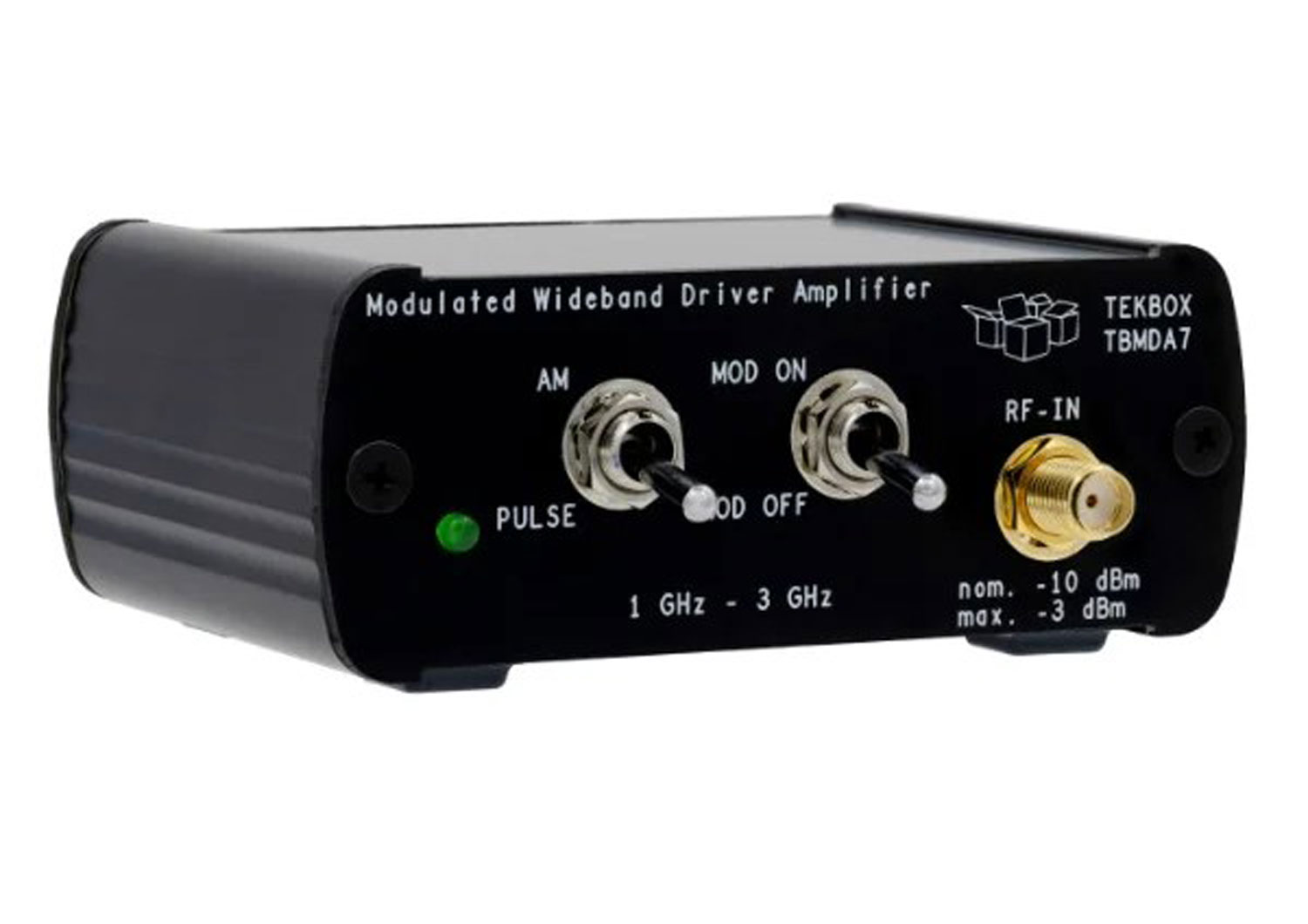

TEKBOX TBMDA7 1GHz-3GHz Modulated Wideband Power Amplifier

Description TBMDA7 1GHz-3GHz Modulated Wideband Power Amplifier The Tekbox TBMDA7 modulated wideband driver amplifier is designed to provide a cost-effective signal source for immunity testing of electronic building blocks and products. It operates within the frequency range of 1 GHz to 3 GHz and is intended to be driven by the tracking generator output of spectrum analysers. With a 1dB compression point of 350 mW average and a saturated output power of 500 mW average, it can amplify the output power of a tracking generator to drive Tekbox near-field probes, helping to identify sensitive spots in an electronic circuit. Additionally, it can create electric fields up to 150V/m CW and 80V/m AM when driving the Tekbox TEM Cell TBTC 0, 80V/m CW and 45V/m AM when driving the TBTC1, 40V/m CW and 25V/m AM when driving the TBTC2, or 27V/m CW and 15V/m AM when driving the TBTC3. Test signals for immunity testing can be continuous wave (CW), amplitude modulated (AM), or phase modulated (PM). The TBMDA7 has built-in modulation capabilities to generate 1 kHz AM or PM signals. In PM mode, it can also generate a 217 Hz signal with a 12.5% duty cycle to simulate mobile phone TDMA noise. Specifications Frequency range: 1 GHz – 3 GHz RF Input / Output: 50 Ohm, SMA female; DC supply: Mini-USB-C connector Nominal supply Voltage: 5V, typ. 800mA; maximum supply voltage 5.5V. Nominal input power: -10 dBm to – 8 dBm; maximum input power: -5 dBm continuous, -3 dBm max. Operating temperature range: -20°C to 50°C Harmonics: < -10 dBc typ. @ 1.5 GHz Harmonics: < -15 dBc typ. @ 1.5 GHz Internal modulation frequency AM: 1 kHz ±10% Internal modulation frequencies PM: 1 kHz ±10%, 217 Hz ±20% Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz Features: CW amplifier (modulation off) 1 kHz, 80% AM modulation 1 kHz, 50% duty cycle pulse modulation 217 Hz, 12.5% duty cycle pulse modulation Application General-purpose gain block Signal source for immunity testing, driving near field probes Signal source for immunity testing, driving TEM Cells   Product Images Modulation Learn more... Immunity Testing Using a TEM Cell Learn more... Immunity Testing Using near field probes Learn more... Calibration set up EMCview PRO Learn more...
