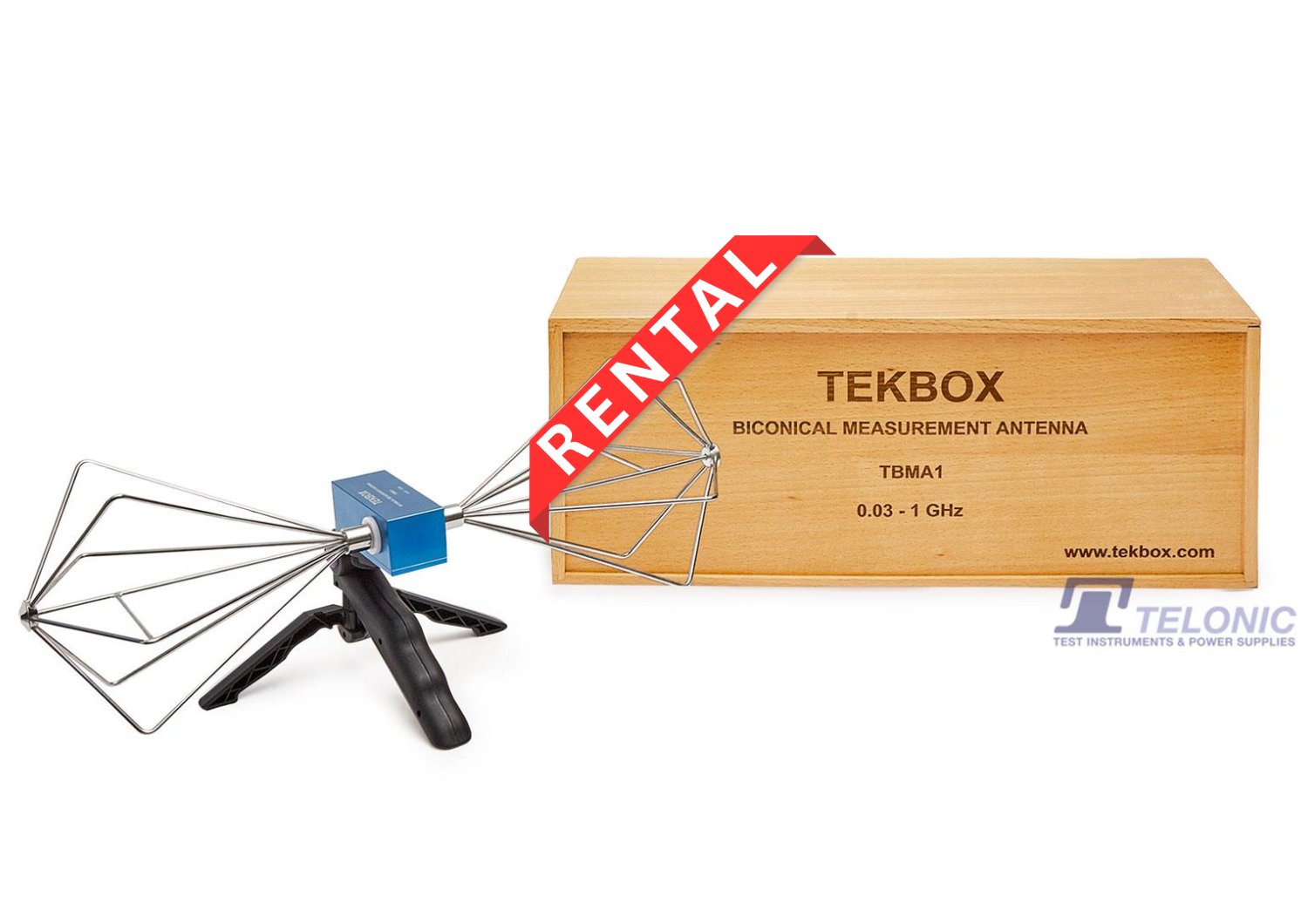

Description Rental Tekbox TBMA1 Antenna The TBMA1 (30MHz – 1GHz) is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is ideal for radiated noise EMC pre-compliance testing and for generating defined field strength. It is characterised from 30MHz to 1GHz and has a directional pattern similar to a dipole. The TBMA1 comes in a solid Beech Wood Case, together with a “Pistol-Grip” tripod. A standard 1/4 thread makes it easy to connect it to most standard tripods. The elements are corrosion resistant and constructively locked against rotation. They are fed via a wideband balun with 2W power handling capability. Furthermore they are protected against build-up of static charge. Features: Type: Passive Biconical Frequency Range: 30MHz – 1GHz Nominal Impedance: 50Ω Maximum Continuous Input RF Power: 2W Connector: N-Type Female Isotropic Gain: -42.15 … 1.78 dBi Antenna Factor: 16.30 … 41.91 dB/m Voltage Standing Wave Ratio (VSWR) Max <2.8 Length: 430mm (17″) tip-to-tip Diameter: 160mm (6.3″) Depth: 163mm (6.4″) including housing Weight: 0.46kg Tripod Adapter Thread Size: 1/4″ Product Images Radiation Efficiency in % Learn more... Antenna Factor Learn more... Isotropic Gain Learn more...
