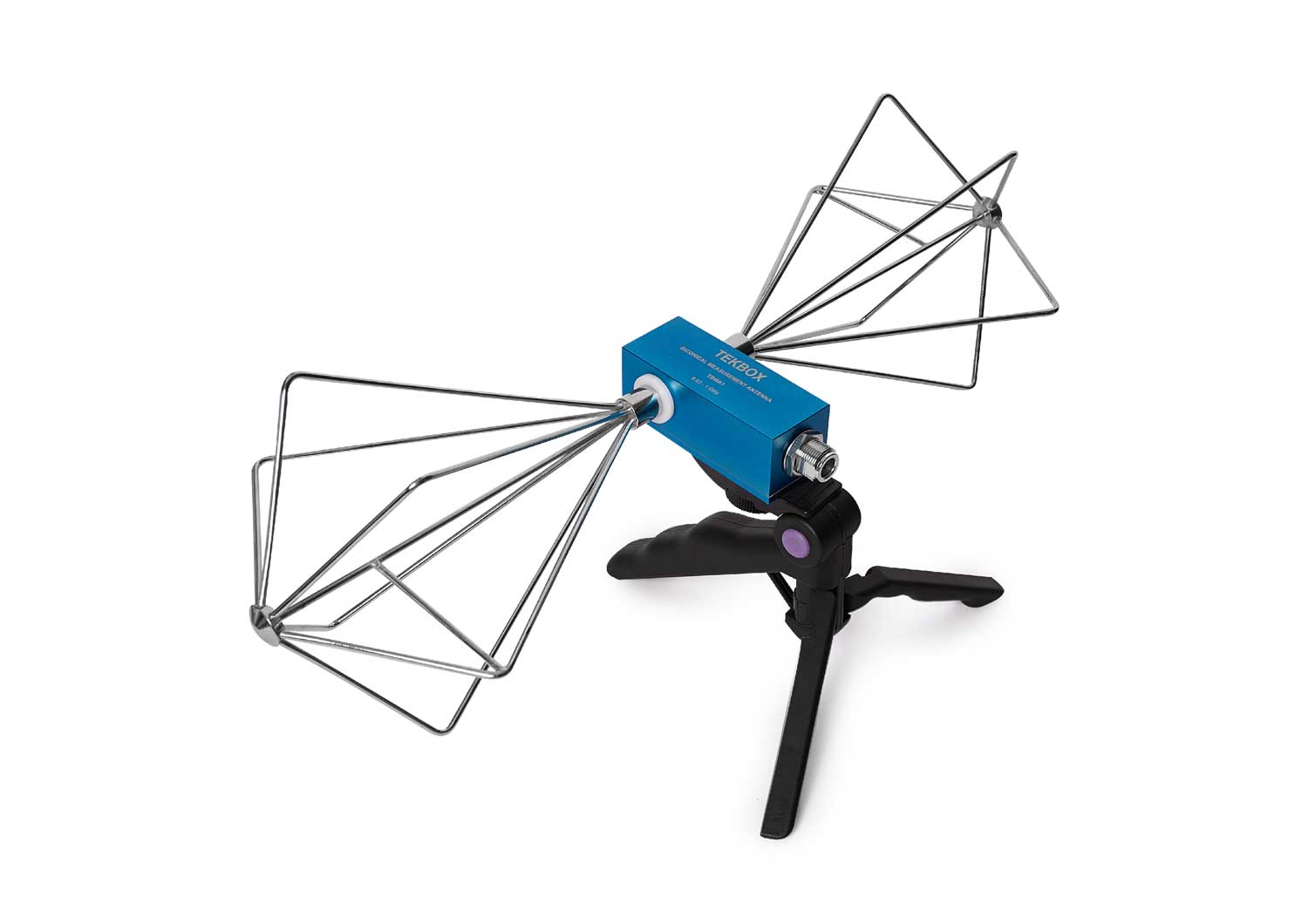

Description Tekbox TBMA1B Biconical Antenna 30MHz – 3GHz The TBMA1B is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is targeting radiated noise EMC pre-compliance testing and generating defined field strengths. It is characterized from 30 MHz to 3 GHz and has a directional pattern similar to a dipole. The TBMA1B comes in an aluminum carrying case, together with a “pistol-grip” tripod. A standard ¼” thread makes it easy to connect it to most standard tripods. The elements are corrosion resistant and constructively locked against rotation. They are fed via a wideband balun with 2 W power handling capability. Furthermore they are protected against build-up of static charge. Features: Type: Passive Biconical Frequency range: 30 MHz – 3000MHz Isotropic gain at 3m spacing: -38.46 … 1 dBi Antenna factor at 3m spacing: 17.24 … 51.20 dB/m Maximum continuous input RF power: 2W Nominal impedance: 50 Ω RF Connector: N type female Matching: 1:2 transformer 1:1 balun Tripod Adapter Thread Size: 1/4 “ Mechanical Dimensions: L x W x H: 430.73 mm x 163.08 mm x 138.79 mm (16.96” x 6.42” x5.46”) Weight: 0.46 kg (1.01 lbs) Product Images Antenna Factor Learn more... Isotropic Gain Learn more...
