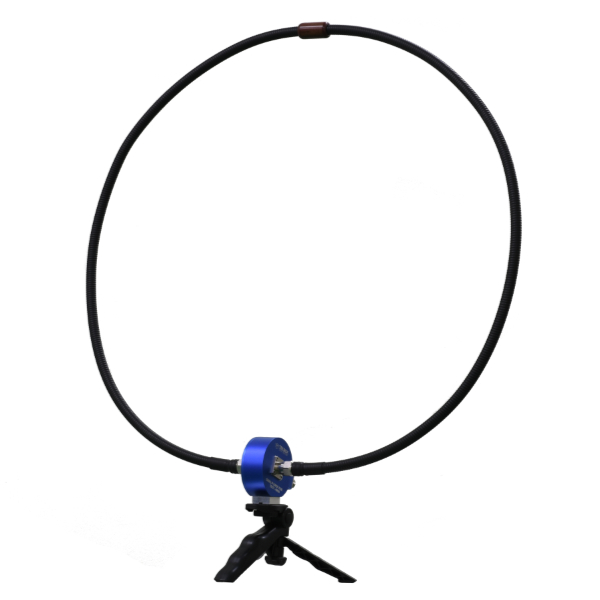

Description Tekbox TBMA6-P Passive Loop Antenna The TBMA6-P is a passive Loop Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment. The loop antenna is designed for radiated emission measurements in the frequency range of 9 kHz – 30 MHz, according to CISPR 16. The loop antenna has a diameter of 60 cm and provides sufficient sensitivity to carry out all relevant measurements specified in the corresponding CISPR standards for the frequency range of 9 kHz – 30 MHz. The loop is built from a corrugated coaxial cable and attached to the transducer with N-connectors. This construction provides flexibility to use it with various loop diameters. An attachment with a ¼” thread permits connectivity to standard tripods. Features: Characterized frequency range: 9 kHz to 30 MHz Magnetic field antenna factor: -20 dB/Ωm @ 30 MHz, typ. Electric field antenna factor: 31,5 dB/m @ 30 MHz, typ. Sensitivity: -24 dBµA/m @ 30 MHz Dimensions: Ф 60 cm Weight: 800 g Connector type: N female Mount: ¼” thread Product Images Magnetic Field Noise Floor Learn more... Magnetic Field Antenna Factor Learn more... Magnetic Field Antenna Factor Learn more...
